Single Board Computers

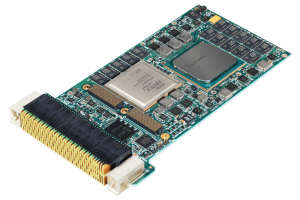

3U VPX Single Board Computer

XPedite8171

Form Factor: 3U VPX Processor: Intel® Atom™ E3845 Alternates: E3805, E3815, E3825, E3826, E3827 Memory: 8 GB DDR3 Ethernet: 2 10/100/1000BASE-T, 2 1000BASE-BX USB: 2 USB 2.0 Serial: 2 RS-232/422/485 SATA: 2 SATA 3 Gb/s

XPedite7670

Form Factor: 3U VPX Processor: Intel® Xeon® D Memory: 16 GB DDR4 Ethernet: 2 10/100/1000BASE-T, 2 10GBASE-KR USB: 2 USB 3.0 Serial: 4 RS-422/485, 6 RS-232 SATA: 6 SATA 6 Gb/s

XPedite7680

Form Factor: 3U VPX Processor: Intel® Xeon® D Memory: 32 GB DDR4 Ethernet: 2 10/100/1000BASE-T, 2 10GBASE-KR USB: 2 USB 2.0 Serial: 4 RS-422/485, 6 RS-232 SATA: 4 SATA 6 Gb/s

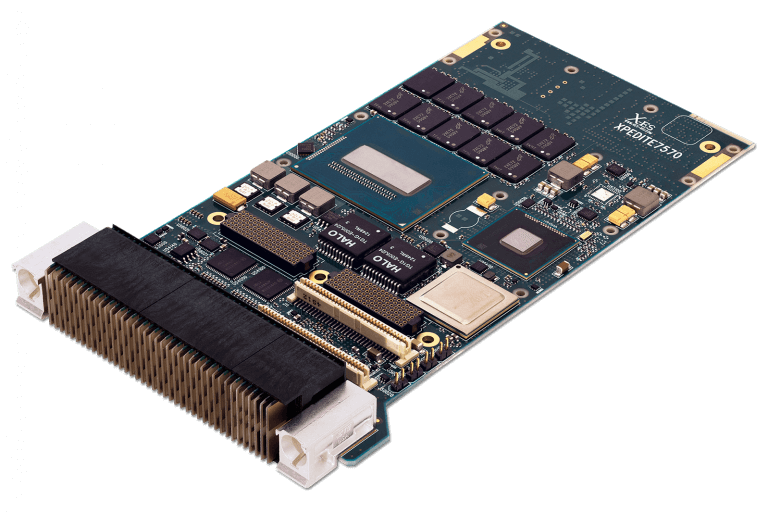

XPedite7570

Form Factor: 3U VPX Processor: Intel® Core™ i7 (4th/5th Gen) Memory: 8 GB DDR3 Ethernet: 2 10/100/1000BASE-T, 2 1000BASE-BX/KX USB: 2 USB 2.0 Serial: 2 RS-232/422/485 SATA: 5 SATA 6 Gb/s

XPedite7574

Form Factor: 3U VPX Processor: Intel® Core™ i7 (4th/5th Gen) Memory: 8 GB DDR3 Ethernet: 2 10/100/1000BASE-T, 2 1000BASE-BX/KX USB: 2 USB 2.0 Serial: 2 RS-232/422/485 SATA: 3 SATA 6 Gb/s

XPedite7575

Form Factor: 3U VPX Processor: Intel® Core™ i7 (4th/5th Gen) Memory: 8 GB DDR3 Ethernet: 1 10/100/1000BASE-T, 2 1000BASE-BX/KX USB: 2 USB 2.0 Serial: 1 RS-232/422/485 SATA: 2 SATA 6 Gb/s

XPedite6370

Form Factor: 3U VPX Processor: NXP QorIQ LS2088A Memory: 16 GB DDR4 Ethernet: 2 10/100/1000BASE-T, 2 10GBASE-KR USB: 2 USB 2.0 Serial: 4 RS-232/422/485 SATA: 2 SATA 6 Gb/s

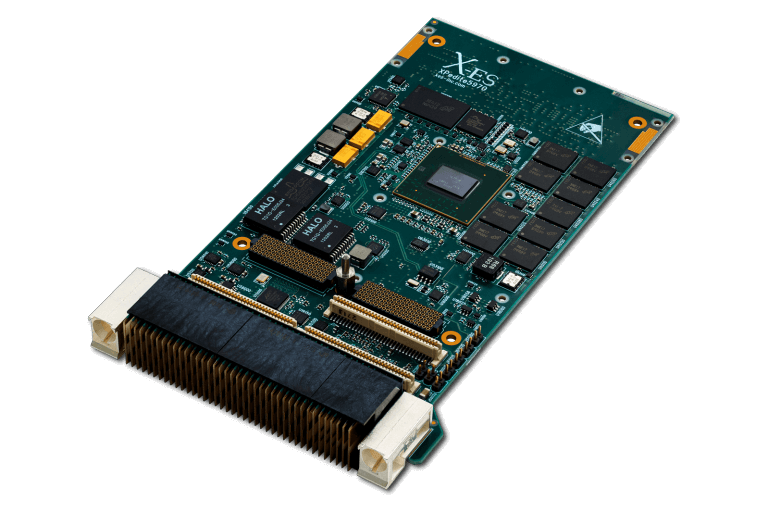

XPedite5970

Form Factor: 3U VPX Processor: NXP QorIQ T2080 Memory: 8 GB DDR3 Ethernet: 2 1000BASE-BX USB: 2 USB 2.0 Serial: 2 RS-232/422/485 SATA: 2 SATA 6 Gb/s

XPedite5570

Form Factor: 3U VPX Processor: NXP QorIQ P2020 Alternates: P1011, P1020, P2010 Memory: 8 GB DDR3 Ethernet: 2 1000BASE-X USB: 1 USB 2.0 Serial: 2 RS-232/422/485

3U Open VPX Single Board Computer with IO

68ARM1

Form Factor: 3U VPX ARM® Cortex®-A9 Dual Core 800 MHz Processor 512 MB DDR3L SDRAM 32 GB On-Board SATA II NAND Flash Expansion SATA II Flash 70+ IO modules to choose

68PPC2

Form Factor: 3U VPX NXP® QorIQ® T2080 Quad-Core e6500 Processor @1.5 GHz Up to 8 GB DDR3 SDRAM Up to 32 GB SATA II NAND Flash 70+ IO modules to choose

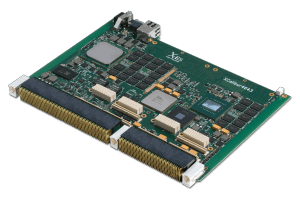

6U VPX Single Board Computer

XCalibur4640

Form Factor: 6U VPX Processor: Intel® Xeon® D Memory: 32 GB DDR4 Ethernet: 2 10GBASE-KR, 3 10/100/1000BASE-T, 4 10GBASE-KX4 USB: 1 USB 2.0, 2 USB 3.0 Serial: 1 RS-232, 5 RS-232/422/485 SATA: 4 SATA 6 Gb/s

XCalibur4540

Form Factor: 6U VPX Processor: Intel® Core™ i7 (4th/5th Gen) Memory: 16 GB DDR3 Ethernet: 2 1000BASE-BX, 3 10/100/1000BASE-T, 4 40GBASE-KR4 USB: 3 USB 2.0 Serial: 2 RS-232/422/485 SATA: 3 SATA 6 Gb/s

6U VME Single Board Computer with IO

64ARM1

Compact 6U VME SBC with support for 6 independent, smart function modules 70+ modules to choose from Independent x1 SerDes interface to each function module slot COSA® architecture ARM® Cortex®-A9 Dual Core 800 MHz Processor 512 MB DDR3L SDRAM Up to 32 GB SATAII NAND Flash (4 GB standard)<5 W MB power dissipation Front and/or rear I/O 2x 10/100/1000 Base-T Ethernet; 2 to rear, or 1 to rear and 1 to front I/O6U VME with Master VME Bus capability Support for 6 independent, smart function modules 70+ modules to choose.

XCalibur1931

Form Factor: 6U VME
Processor: NXP QorIQ T2080
Memory: 8 GB DDR3
Ethernet: 8 10/100/1000BASE-T
USB: 1 USB 2.0
Serial: 2 RS-232/422/485, 4 RS-232
FPGA: Xilinx Artix-7

3U cPCI Single Board Computer with I/O

75ARM1

ARM® Cortex®-A9 Dual Core 800 MHz Processor
512 MB DDR3L SDRAM
Up to 32 GB SATAII NAND Flash 70+ modules to choose
Rear Ethernet option

75PPC

NXP QorIQ P2041 Quad-Core e500mc Processor @ 1.2 GHz
Up to 8 GB DDR3L SDRAM
Up to 32 GB SATA II NAND Flash
70+ modules to choose

75INT2

Intel® Core™ i7-3517UE @ 1.5 GHz Dual Core Processor
Up to 8 GB DDR3L SDRAM
Up to 32 GB SATA II NAND Flash
70+ modules to choose

3U and 6U cPCI Single Board Computer

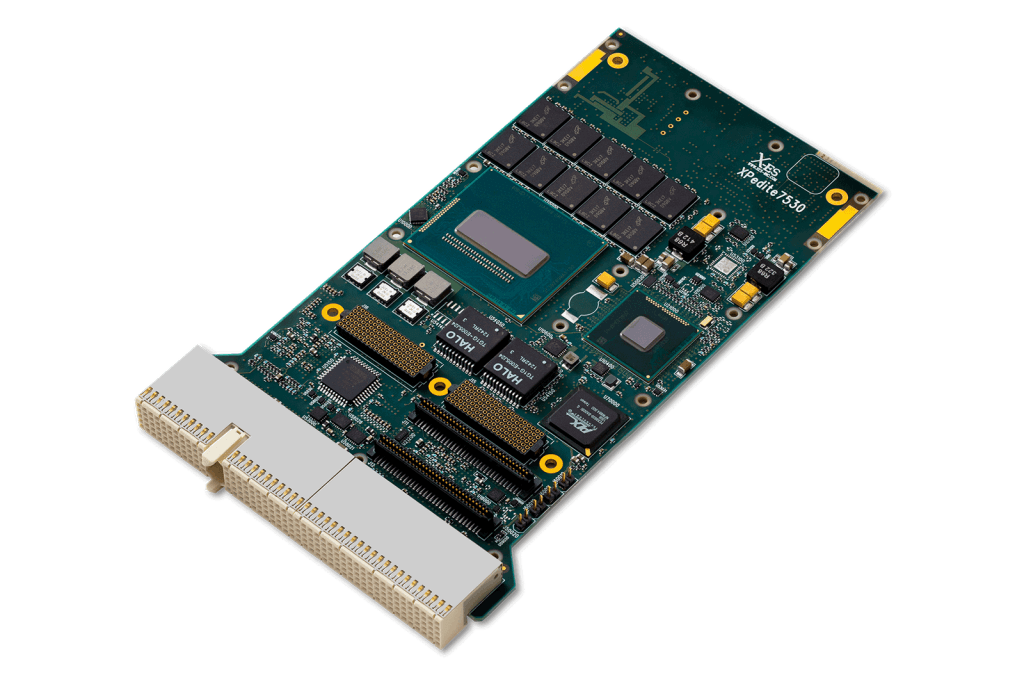

XPedite7530

Form Factor: 3U cPCI Processor: Intel® Core™ i7 (4th/5th Gen) Memory: 8 GB DDR3 Ethernet: 2 10/100/1000BASE-T USB: 2 USB 2.0 Serial: 2 RS-232/422/485 SATA: 4 SATA 3 Gb/s

XPedite5430

Form Factor: 3U cPCI Processor: NXP QorIQ P4080 Alternates: P3041, P4040 Memory: 8 GB DDR3 Ethernet: 2 10/100/1000BASE-T USB: 2 USB 2.0 Serial: 2 RS-232/422/485 SATA: 2 SATA 3 Gb/s

XCalibur4501

Form Factor: 6U cPCI Processor: Intel® Core™ i7 (4th/5th Gen) Memory: 16 GB DDR3 Ethernet: 2 10/100/1000BASE-T USB: 2 USB 2.0 Serial: 2 RS-232/422/485 SATA: 2 SATA 3 Gb/s Datasheet

XCalibur4500

Form Factor: 6U cPCI Processor: Intel® Core™ i7 (4th/5th Gen) Memory: 16 GB DDR3 Ethernet: 3 10/100/1000BASE-T USB: 3 USB 2.0 Serial: 2 RS-232/422/485 SATA: 4 SATA 3 Gb/s

XCalibur1900

Form Factor: 6U cPCI Processor: NXP QorIQ T2080 Memory: 8 GB DDR3 Ethernet: 1 10GBASE-T, 3 10/100/1000BASE-T USB: 2 USB 2.0 Serial: 2 RS-232, 2 RS-232/422/485 SATA: 2 SATA 3 Gb/s

XCalibur1603

Form Factor: 6U cPCI Processor: NXP QorIQ P4080 Alternates: P3041, P4040 Memory: 8 GB DDR3 Ethernet: 3 10/100/1000BASE-T USB: 2 USB 2.0 Serial: 2 RS-232 Datasheet

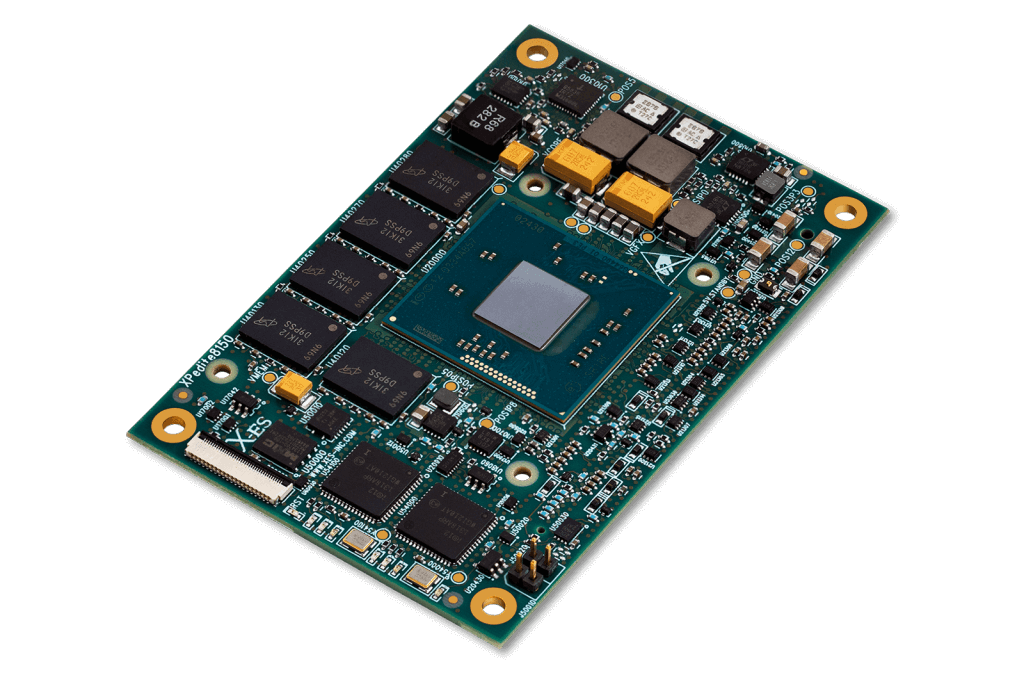

COM Express Mini, Basic, Compact

XPedite8152

Form Factor: COM Express® Mini (Type 10) Processor: Intel® Atom™ E3825 Alternates: E3805, E3815, E3826, E3827, E3845 Memory: 4 GB DDR3 Ethernet: 2 10/100/1000BASE-T USB: 1 USB 3.0, 4 USB 2.0 Serial: 2 Serial Ports SATA: 3 SATA 3 Gb/s Datasheet

XPedite8150

Form Factor: COM Express® Mini (Type 10) Processor: Intel® Atom™ E3845 Alternates: E3805, E3815, E3825, E3826, E3827 Memory: 4 GB DDR3 Ethernet: 2 10/100/1000BASE-T USB: 1 USB 3.0, 4 USB 2.0 Serial: 2 Serial Ports SATA: 2 SATA 3 Gb/s

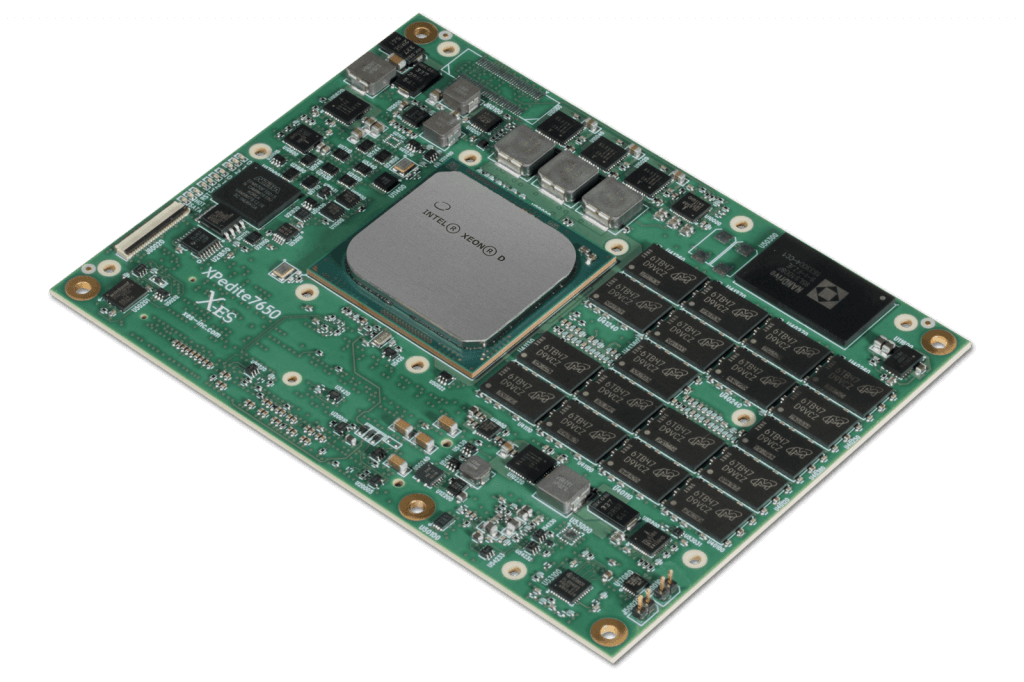

XPedite7650

Form Factor: COM Express® Basic (Type 7) Processor: Intel® Xeon® D Memory: 32 GB DDR4 Ethernet: 1 10/100/1000BASE-T, 2 10GBASE-KR USB: 4 USB 3.0 Serial: 2 LVTTL SATA: 2 SATA 6 Gb/s

XPedite5650

Form Factor: COM Express® Mini (Type 10) Processor: NXP QorIQ P2041 Memory: 4 GB DDR3 Ethernet: 1 10/100/1000BASE-T, 1 1000BASE-X USB: 2 USB 2.0 Serial: 2 Serial Ports SATA: 2 SATA 3 Gb/s

XPedite5551

Form Factor: COM Express® Mini (Type 10) Processor: NXP QorIQ P1021 Alternates: P1012 Memory: 2 GB DDR3 Ethernet: 3 10/100/1000BASE-T USB: 1 USB 2.0 Serial: 1 TTL Level

XPedite5550

Form Factor: COM Express® Compact (Type 5) Processor: NXP QorIQ P2020 Alternates: P1011, P1020, P2010 Memory: 8 GB DDR3 Ethernet: 3 10/100/1000BASE-T USB: 1 USB 2.0 Serial: 2 Serial Ports

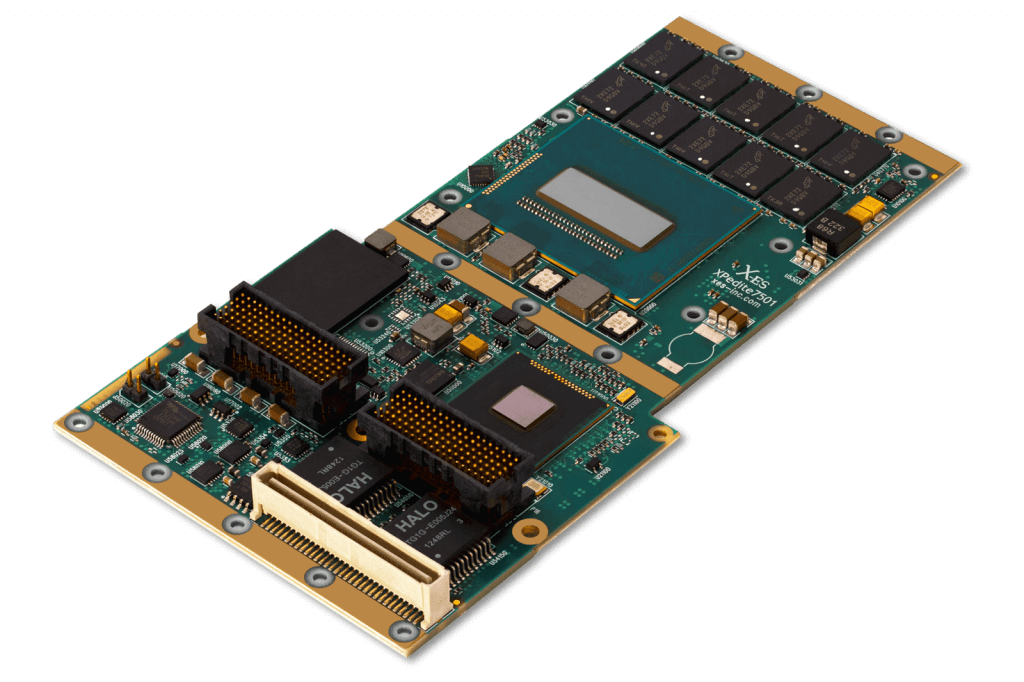

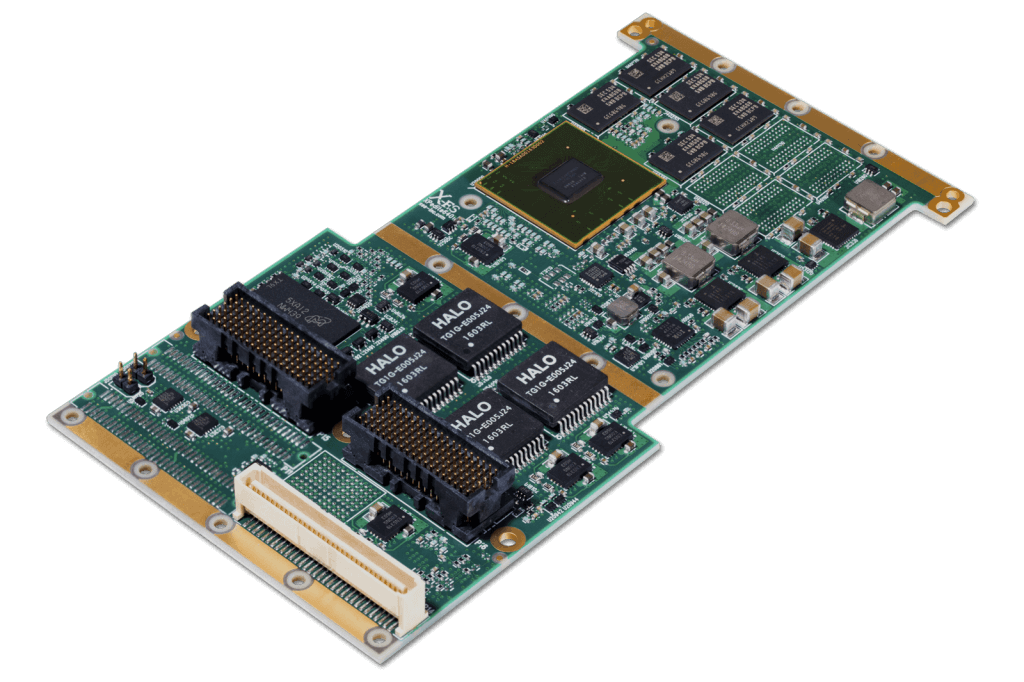

PMC / XMC Processor Boards

XPedite8103

Form Factor: XMC Processor: Intel® Atom™ E3845 Alternates: E3805, E3815, E3825, E3826, E3827 Memory: 8 GB DDR3 Ethernet: 4 10/100/1000BASE-T USB: 1 USB 2.0 Serial: 2 RS-232/422/485

XPedite8101

Form Factor: PMC, XMC Processor: Intel® Atom™ E3845 Alternates: E3805, E3815, E3825, E3826, E3827 Memory: 8 GB DDR3 Ethernet: 2 10/100/1000BASE-T USB: 4 USB 2.0 Serial: 2 RS-232/422/485 SATA: 2 SATA 3 Gb/s

XPedite7501

Form Factor: XMC Processor: Intel® Core™ i7 (4th/5th Gen) Memory: 8 GB DDR3 Ethernet: 2 10/100/1000BASE-T USB: 4 USB 2.0 Serial: 2 RS-232/422/485 SATA: 2 SATA 6 Gb/s

XPedite6401

Form Factor: PMC, XMC Processor: NXP QorIQ LS1043A Alternates: LS1023A, LS1026A, LS1046A, LS1048A, LS1088A Memory: 8 GB DDR4 Ethernet: 2 1000BASE-X, 2 10GBASE-KR, 4 10/100/1000BASE-T USB: 1 USB 3.0, 2 USB 2.0 Serial: 2 RS-232/422/485 SATA: 1 SATA 6 Gb/s

XPedite6101

Form Factor: PMC, XMC Processor: NXP QorIQ T2081 Alternates: T1022, T1042 Memory: 8 GB DDR3 Ethernet: 2 10/100/1000BASE-T USB: 2 USB 2.0 Serial: 2 RS-232/422/485 SATA: 2 SATA 3 Gb/s

XPedite6100

Form Factor: PMC, XMC Processor: NXP QorIQ T1042 Alternates: T1022, T2081 Memory: 8 GB DDR3 Ethernet: 4 10/100/1000BASE-T USB: 3 USB 2.0 Serial: 2 RS-232, 2 RS-232/422/485 SATA: 2 SATA 6 Gb/s

XPedite5600

Form Factor: PMC, XMC Processor: NXP QorIQ P2041 Alternates: P2040 Memory: 8 GB DDR3 Ethernet: 1 1000BASE-BX, 3 10/100/1000BASE-T USB: 2 USB 2.0 Serial: 2 RS-232, 2 RS-232/422/485 SATA: 2 SATA 3 Gb/s

XPedite5504

Form Factor: PMC, XMC Processor: NXP QorIQ P2010 Alternates: P1011, P1020, P2020 Memory: 8 GB DDR3 Ethernet: 3 10/100/1000BASE-T Serial: 4 RS-232 Datasheet

XPedite5502

Form Factor: PMC, XMC Processor: NXP QorIQ P2020 Alternates: P1011, P1020, P2010 Memory: 8 GB DDR3 Ethernet: 3 10/100/1000BASE-T USB: 1 USB 2.0 Serial: 2 RS-232, 2 RS-232/422/485

XPedite5501

Form Factor: PMC, XMC Processor: NXP QorIQ P2020 Alternates: P1011, P1020, P2010 Memory: 8 GB DDR3 Ethernet: 3 10/100/1000BASE-T USB: 1 USB 2.0 Serial: 1 RS-232, 2 RS-232/422/485

XPedite5500

Form Factor: PMC, XMC Processor: NXP QorIQ P2020 Alternates: P1011, P1020, P2010 Memory: 8 GB DDR3 Ethernet: 3 10/100/1000BASE-T USB: 2 USB 2.0 Serial: 2 RS-232, 2 RS-232/422/485

XPedite5401

Form Factor: PMC, XMC Processor: NXP QorIQ P4080 Alternates: P3041, P4040 Memory: 8 GB DDR3 Ethernet: 2 10/100/1000BASE-T USB: 2 USB 2.0 Serial: 2 RS-232/422/485 SATA: 2 SATA 3 Gb/s

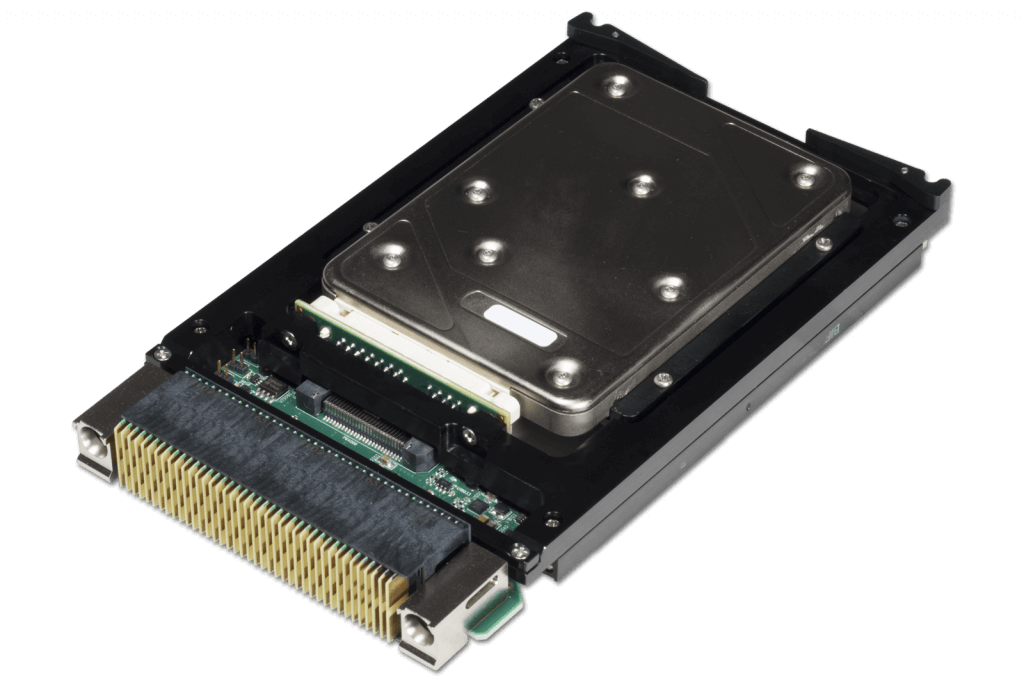

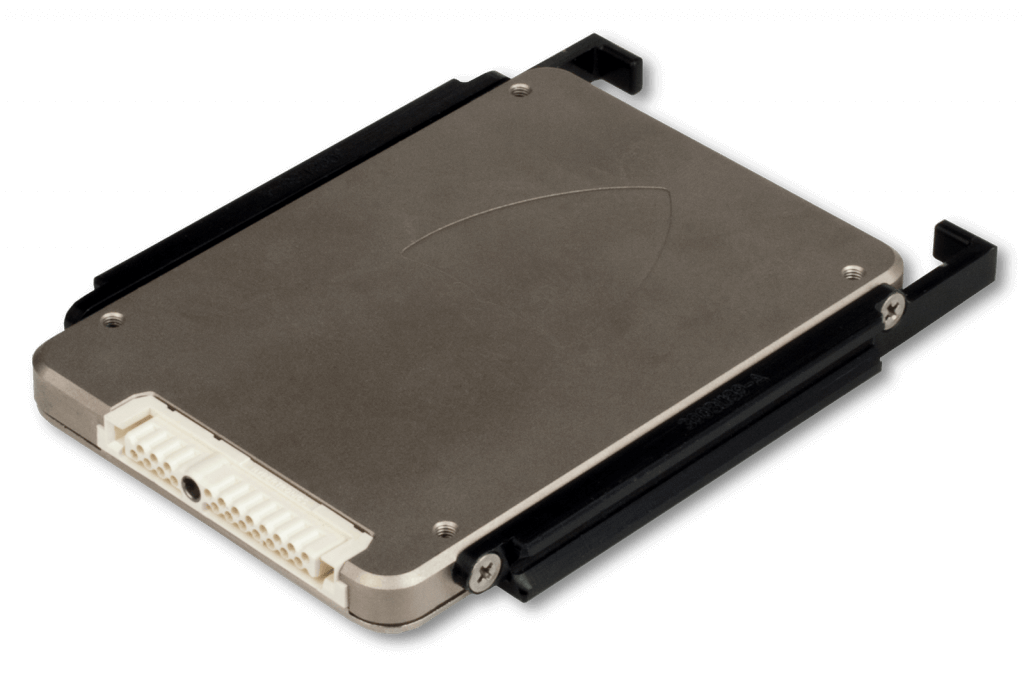

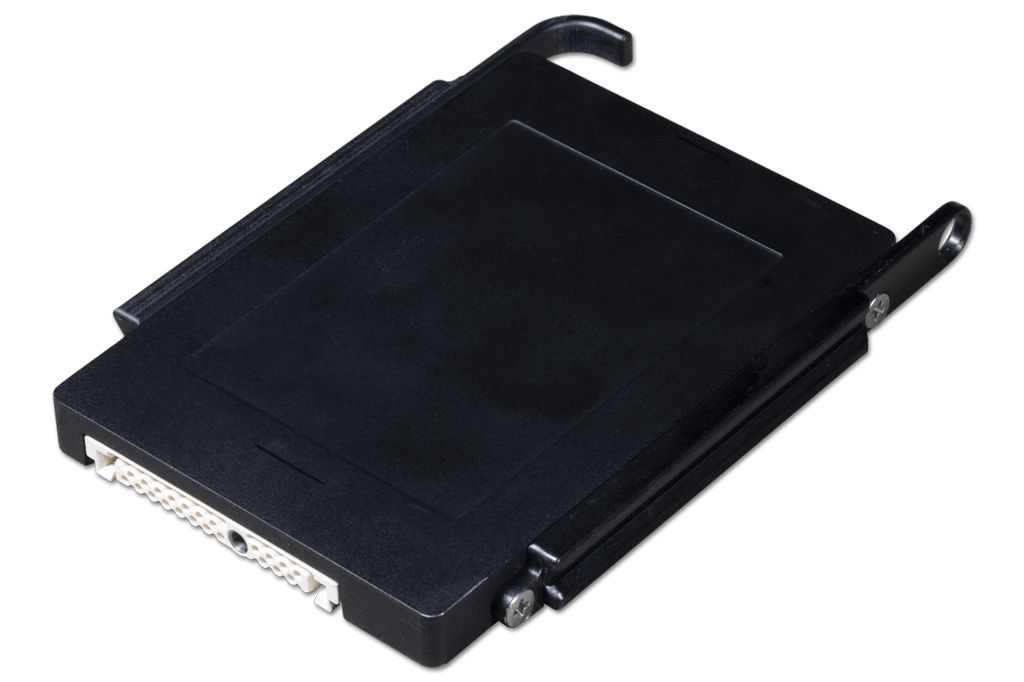

Solid State Storage Module

Solid-State Storage modules (SSDs) offer up to 4 TB of highly-secure, rugged storage all within an industry-standard 3U VPX or XMC form factor. These storage modules are a high-density, reliable, embedded storage solution with support for AES-256 XTS encryption, several military sanitization protocols, including a fast clear, and solid-state SLC NAND flash technology.

XPort6196

Form Factor: Custom Interface: 1 SATA 6 Gb/s Media Type: Solid-State Drive (SSD) Media Max. Size: 2 TB

XPort6193

Form Factor: Custom Interface: 1 SATA 3 Gb/s Media Type: Solid-State Drive Media Max Size 512 GB

XPort6175

Form Factor: 3U VPX Interface: 1 x2 PCI Express Media Type: Solid-State Drive (SSD) Media Max. Size: 4 TB

Rack Mount Servers

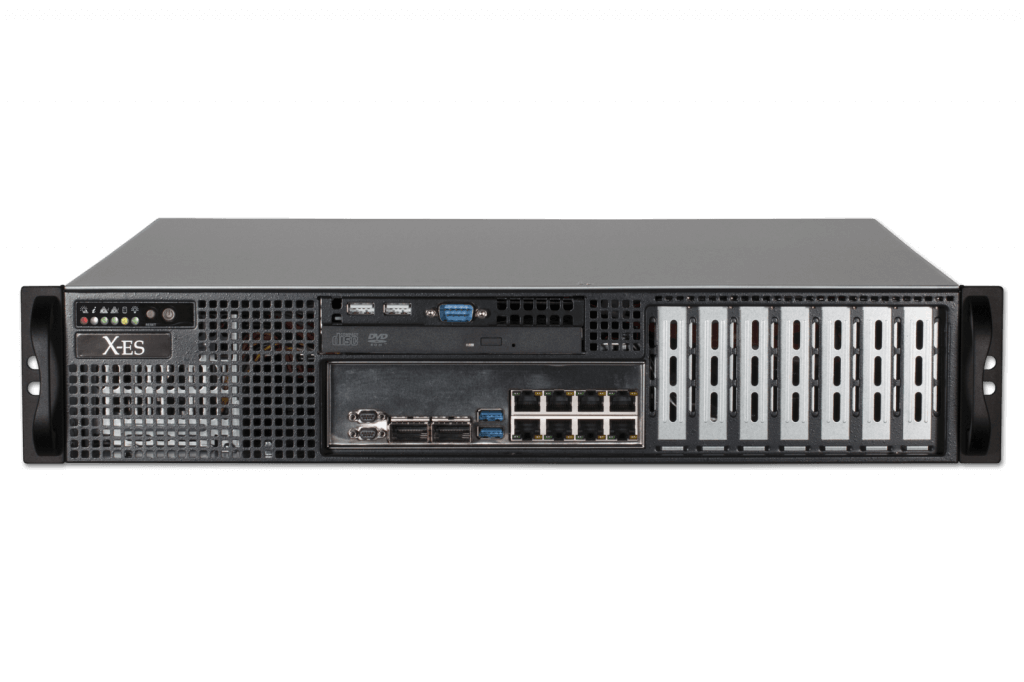

XPand9011

Form Factor: 2U Rackmount Server Processor: Intel® Xeon® E5-2648L v4 Memory: 128 GB DDR4 Ethernet: 2 40GbE QSFP+, 6 10/100/1000BASE-T USB: 2 USB 2.0, 2 USB 3.0 Serial: 2 RS-232/422/485 SATA: 9 SATA 6 Gb/s FPGA: Xilinx Kintex® UltraScale™

XPort6193

Form Factor: Custom Interface: 1 SATA 3 Gb/s Media Type: Solid-State Drive Media Max Size 512 GB

XPort6175

Form Factor: 3U VPX Interface: 1 x2 PCI Express Media Type: Solid-State Drive (SSD) Media Max. Size: 4 TB
