Smart I/O Boards
3U cPCI Multifunction I/O Boards
Model 75G5
75G5, can be configured with up to three smart function modules. Ideally suited for rugged military, industrial, and commercial applications, Preexisting, fully-tested functions can be combined quickly and easily in an unlimited number of ways.
Model 75D4
75D4 is a 3U cPCI High-Density I/O and Communication Board with a single, high-density function module slot. In addition, the motherboard also includes an option for an integrated four-channel RS232/423/422/485 serial communication complement.
Model 75C3
75C3 is a 3U cPCI Multifunction I/O and Communication Board with three independent function module slots. Two of the slots can be configured with a variety of I/O and communication functions; the third, with either a combination module or with a reference supply.
Model 75C5
75C5 is a 3U cPCI Multifunction I/O and Communication Board with three independent function module slots. Two of the slots can be configured with a variety of I/O and communication functions; the third, with either a combination module or with a reference power supply.
Model 75D4-H2
75D4-H2 is a Layer 2+ Gigabit Ethernet Switch built upon NAI’s multifunction, 3U cPCI board technology. The 75D4 motherboard contains a high-density I/O module slot that supports an H2 switch function. The 75D4 with H2 consumes approximately 9.5 W of total power at 5 V.
6U cPCI Multifunction I/O Boards
Model 78C2
78C2 is a 6U cPCI Multifunction I/O and Communication Board with six independent function module slots that can be configured with a variety of I/O and communication functions. Additional enhancements include FIFO data buffering for select modules. Using multiple DSPs, the enhanced motherboard enables higher processing power and dedicated pre-processing control for each.
Model 78CS2
78CS2 is a 6U cPCI Multifunction I/O and Communication Board designed for applications requiring Digital-to-Synchro/Resolver (D/S) stimulus output, as well as I/O and communication functions. This board contains five independent function module slots. The board can be configured for 10 D/S channels, or for D/S in combination with I/O and communication modules.
6U VME Multifunction I/O Boards

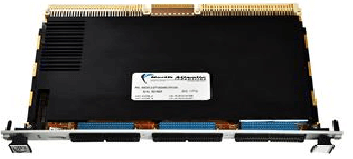

Model 64G5
64G5 can be configured with up to six smart function modules. Ideally suited for rugged military, industrial, and commercial applications, this low-power/high-performance, board accelerate deployment of SWaP-systems.
Model 64C3
64C3 is a 6U VME Multifunction I/O and Communication Master or Slave (user selectable) Control Board with six function module slots that can be configured with a variety of I/O functions.
Model 64CS4
64CS4 is a 6U VME Multifunction I/O board designed for applications requiring Digital-to-Synchro/Resolver (D/S) stimulus output, as well as I/O and communication functions. This board contains five intelligent, function module slots.

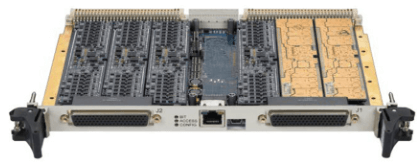

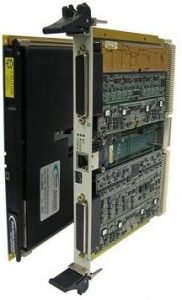

Model 64C2
64C2 is a 6U VME Multifunction I/O and Communication Slave Board with six function module slots that can be configured with a variety of I/O and communication functions. Enhancements include FIFO data buffering for select modules.
3U OpenVPX Multifunction I/O Boards
Model 68G5
68G5, can be configured with up to three smart function modules. Ideally suited for rugged military, industrial, and commercial applications, this low-power/high-performance board delivers off-the-shelf solutions that accelerate deployment of SWaP-C optimized systems
Model 68C3
68C3 is a 3U OpenVPX Multifunction I/O and Communication Board with three function module slots that can be configured with a variety of I/O and communication functions. Additional enhancements include FIFO data buffering for select modules.
6U OpenVPX Multifunction I/O Boards

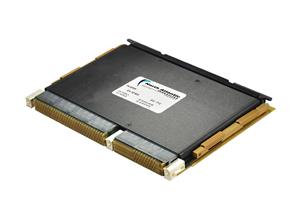

Model 67G6
67G6, can be configured with up to six smart function modules. Ideally suited for rugged military, industrial, and commercial applications, this low-power/high-performance board delivers off-the-shelf solutions that accelerate deployment of SWaP-optimized systems.
Model 67C3
68C3 is a 6U OpenVPX Multifunction I/O and Communication Board with six function module slots that can be configured with a variety of I/O and communication functions. Additional enhancements include FIFO data buffering.
PCI/PCIe Multifunction I/O Boards

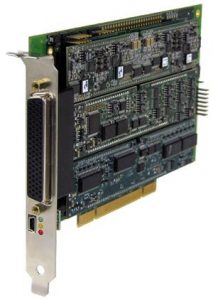

Model 76C2
76C2 is a PCI/PCIe Multifunction I/O and Communication Board with three independent function module slots that can be configured with a variety of I/O and communication functions.
Model 76CS3
76CS3 is a PCI/PCIe Multifunction I/O and Communication Board designed for applications requiring Digital-to-Synchro/Resolver (D/S) and Digital-to-LVDT/RVDT (DLV) stimulus output, as well as I/O and communication functions.

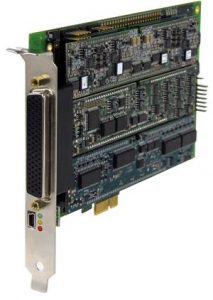

Model 79C3
79C3 is a PCIe Multifunction I/O and Communication Board with three independent function module slots that can be configured with a variety of I/O and communication functions.
Model 79G5
79G5 can be configured with up to three NAI smart I/O and communication function modules. Ideally suited for high channel density and combined Multifunction I/O requirement
Single Board Computers with I/O
3U cPCI SBC with I/O
Model 75ARM1
75ARM1 is a 3U cPCI ARM® Cortex®-A9-based, Single Board Computer (SBC) that can be configured with up to three smart function modules.
Model 75PPC1
75PPC1 is a 3U cPCI NXP® QorIQ® P2041, PowerPC-based, Single Board Computer (SBC) that can be configured with up to two smart function modules.
Model 75INT2
75INT2 is a 3U cPCI Intel® Core™ i7-based, Single Board Computer (SBC) that can be configured with up to two smart function modules.
3U Open VPX SBC with I/O
Model 68ARM1
68ARM1 is a 3U VPX ARM® Cortex®-A9-based, Single Board Computer (SBC) that can be configured with up to three smart function modules. Ideally suited for rugged defense, commercial aerospace, and industrial applications, the 68ARM1 delivers off-the-shelf solutions that accelerate deployment of SWaP-optimized systems.
Model 68PPC2
68PPC2 is a 3U OpenVPX, NXP® , QorIQ® T2080 quad-core processor, PowerPC-based, Single Board Computer (SBC) that can be configured with up to two intelligent function modules. Ideally suited for rugged defense, commercial aerospace, and industrial applications, the 68PPC2 delivers off-the-shelf solutions that accelerate deployment of SWaP-optimized systems.
6U VME SBC with I/O
Model 68ARM1
64ARM1 is a 6U VMEARM® Cortex®-A9-based, Single Board Computer (SBC) that can be configured with up to six smart function modules. Ideally suited for rugged defense, commercial aerospace, and industrial applications, the 64ARM1 delivers off-the-shelf solutions that accelerate deployment of SWaP-optimized systems.
Rugged COTS Systems
Model NIU1A
NIU1A contains an integrated power supply, one function module slot, and an optional ARM® Cortex®-A9 processor. This small, low-power unit is ideally suited for rugged military, industrial, and commercial applications.
Model NIU2A
NIU2A contains an integrated power supply, two function module slots and an optional ARM® Cortex®-A9 processor. This small, low-power unit is ideally suited for rugged military, industrial, and commercial applications.
Model SIU31
SIU31 is a highly configurable Rugged COTS System or subsystem ideally suited for military, industrial, and commercial applications that require high-density I/O, communications, Ethernet switching, and processing.
Model SIU33
SIU33 is a highly configurable Rugged COTS System or subsystem ideally suited for rugged military, industrial, and commercial applications that require high-density I/O, communications, Ethernet switching, and processing. The SIU33 uses up three NAI field-proven, 3U cPCI boards
Model SIU35
SIU35 is a highly configurable Rugged COTS System or subsystem ideally suited for military, industrial, and commercial applications that require high-density I/O, communication, Ethernet switching, and processing. The SIU35 uses up to five NAI field-proven, 3U cPCI boards
Model SIU6
SIU6 is a highly configurable Rugged COTS System or subsystem ideally suited for military, industrial, and commercial applications that require high-density I/O, communication, Ethernet switching, and processing. The SIU6 leverages NAI field-proven, 6U VME boards.
Model SIU36
SIU36 is a highly configurable rugged COTS system or subsystem ideally suited for military, industrial, and commercial applications that require high-density I/O, communication, Ethernet switching, and processing. The SIU36 uses up to six NAI field-proven, 3U OpenVPX boards to deliver off-the-shelf, SWaP-optimized COTS solutions that Accelerate Your-Time-to-Mission™. Configure with up to 18 I/O and communication function modules, over 70 smart modules to choose from (w/optional ARM processor)
Application Ready Rugged COTS Systems
Application Ready Systems provide customers with pre-configured, pre-validated, rugged military embedded solutions that save development time and cost while reducing program risk. Given below are pre-configured and validated systems for platforms like Data Acquisition, Fire Control & Targeting, Vehicle Management, Integrated Vehicle Health Monitoring, Remote Data Concentrator.
Offer the Following Benefits
- Reduced design risk
- Increased design versatility
- Streamlined development resources
- Faster integration
- Higher packaging density
- Reduced power consumption
- Overall lower program cost
- Save development time
Rugged Ethernet Switch

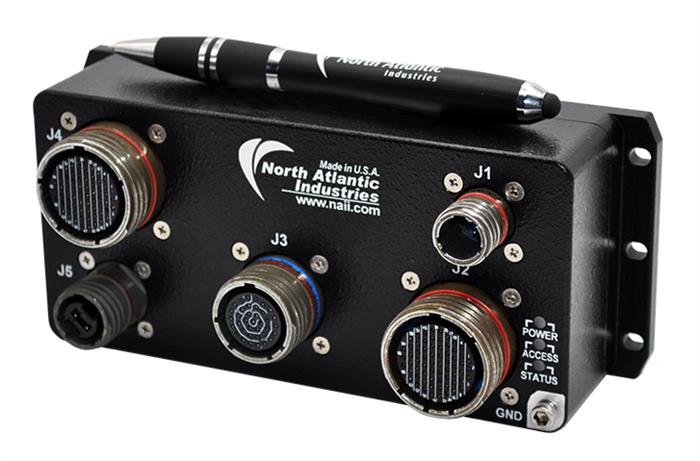

Model NIU2A-ES2
NIU2A-ES2 is a small, low-power, self-contained Rugged Ethernet Switch system that is ideally suited for military, commercial aerospace and industrial applications requiring a SWaP-optimized solution. Powered by an integrated MIL-STD-704A (designed to meet) power supply, it is a Layer 3, fully managed switch providing sixteen (16) 10/100/1000Base-T Gigabit Ethernet ports and four (4) optional 10 Gigabit 850 nm multimode fiber-optic ports. Additionally, there is one GbE and one RS-232 port for maintenance / configuration interface.
Model RESIU31
RESIU31 subsystem is configured with NAI’s 75D4-H2, a Layer 2+ Gigabit Ethernet (Gig-E) Switch. Ideally suited for rugged military, industrial, and commercial applications, the RESIU31 delivers an off-the-shelf Ethernet switching solution that accelerates deployment of SWaP-optimized systems. In addition, the 75D4 motherboard can integrate four channels of RS232/423/422/485 serial communications. Serial data is available on the cPCI bus or, optionally, via one of the Ethernet switch ports.
